Bolt pattern 5x120 - 5x130 and 6x114.3 - 6x139.7. Suitable for 98% of 6-lug vehicles, including pick-up trucks and SUVs. Only compatible with 5-lug vehicles having 5x120 - 5x130 bolt patterns.

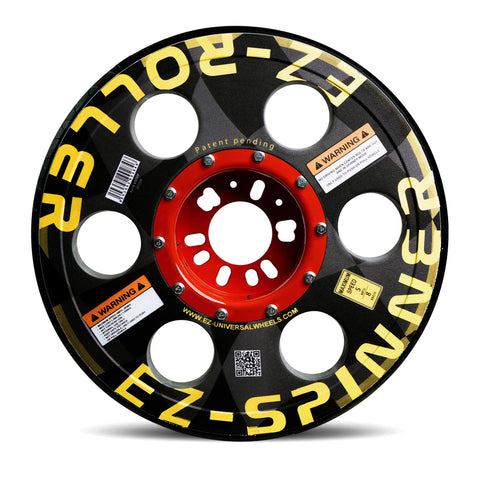

The EZ Roller-Spinner for 5/6 Lug Vehicles (#40060PW) is a versatile and essential tool for automotive professionals. It is designed for collision shops, tire stores, dealerships, auctions, auto repair shops, auto restoration shops, and wheel repair companies. It's also a valuable asset for theft recovery and towing companies.
Product Specifications:
- Part Number: 40060PW
- Max Load Capacity: 2200 lbs / 1000 kg per wheel
- Speed Rating: 5 mph / 8 km/h
- Weight: 23.5 lbs / 11 kg
- Includes: Spinner-Ring and Wedge-Nuts
- Material: Technopolymer with a high-grade steel center
- Warranty: 2 Years and 1 year on Spinner-Ring
Technical Details
- Size: 22” x 2.5”
- Center Bore (CB): 93.1 mm
- Bolt Pattern: 5x120 - 5x130 and 6x114.2 - 6x139.7 (Works on 98% of 6-lug vehicles, including pick-up trucks and SUVs. (Only compatible with 5-lug vehicles with 5x120 - 5x130 bolt patterns)
Key Benefits
- Dual Functionality: Acts as both a roller wheel and a roller-spinner, providing enhanced versatility.
- Roller Mode (Bolts In): Drivable at 5 mph around the shop or parking lot.
- Works as a roller but can transform into a spinner by removing the bolts holding the center. A flange is pre-installed to hold the wheel in place so that the wheel can freely spin in either direction.
- Spinner Mode (Bolts Out): Allows pushing or pulling vehicles with no power or stuck in park onto tow trucks or into service bays. Works as a roller but can transform into a spinner by removing the bolts holding the center. A flange is pre-installed to hold the wheel in place, so that the wheel can freely spin in either direction.
- Convenient Mobility: Move vehicles effortlessly, whether they lack power or are stuck in park.
Features:
- Durable Construction: Made from lightweight, high-strength technopolymer materials.
- Temperature Resistance: Withstands extreme conditions.
- EZ Wedge Nuts: Enables 30-second bolt removal.
- Spinner Ring: Holds the spinner wheel in place when mounted on the vehicle hub.
- Superior Traction & Durability: Reliable performance on all terrains.
- Steel Center: Heavy-duty 10 mm high-grade steel, suitable for high-impact wrenches.
- Brake Caliper Clearance: Built-in spacers accommodate large calipers, including Brembo.
- Lightweight: Easy to lift and maneuver.
- Compatibility: Uses OEM nuts and bolts; no additional accessories needed.
- Secure Fastening: 60º cone seat fits most OEM bolts and nuts.
